20rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder

Brand Name : STT

Model Number : JJ-BRJ800-2

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 35 days

Packaging Details : seaworthy packing

Name : simple transformer foil winding machine

Contact Now

Simple Copper and Aluminium Strip Winder LV Transformer Foil Winding Machine

Description of transformer foil winding machine JJ-BRJ800-2

Simple transformer foil winding machine JJ-BRJ800-2 is one of simple and practical transformer foil winding machines, which can be used to wind dry type transformer foil coils. The kind of transformer foil winding machine can handle one or two layers of copper or aluminium foil conductors and one or two layers of insulation paper. It is very easy to operate the kind of foil winding machine.

Main components of transformer foil winding machine JJ-BRJ800-2

simple frame
Winding foil unit
Two foil decoilers
Two insulation decoilers
Control system based on PLC
Counter
Foot pedal
Electric cabinet

Main parameters of transformer foil winding machine JJ-BRJ800-2

Foil Width:	Maximum 800mm
Wound Coil Shape:	oval, round and rectangular
Foil Material OD.:	≤1,000mm
Foil Material ID.:	500mm
Foil Decoiler Number:	2 pcs
Foil Decoiler Length:	850mm
Foil Decoiler Expanding Range:	400-520mm
Winding Motor:	15KW
Winding Shaft Size:	80×80×1150 mm
Rotating Speed:	0～20 Rpm
Insulation Decoiler Number:	2 pcs
Insulation Material OD.:	≤400mm
Insulation Material ID.:	76mm
Insulation Decoiler Length:	850mm
Counting Range:	0 - 9999.9

20rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder

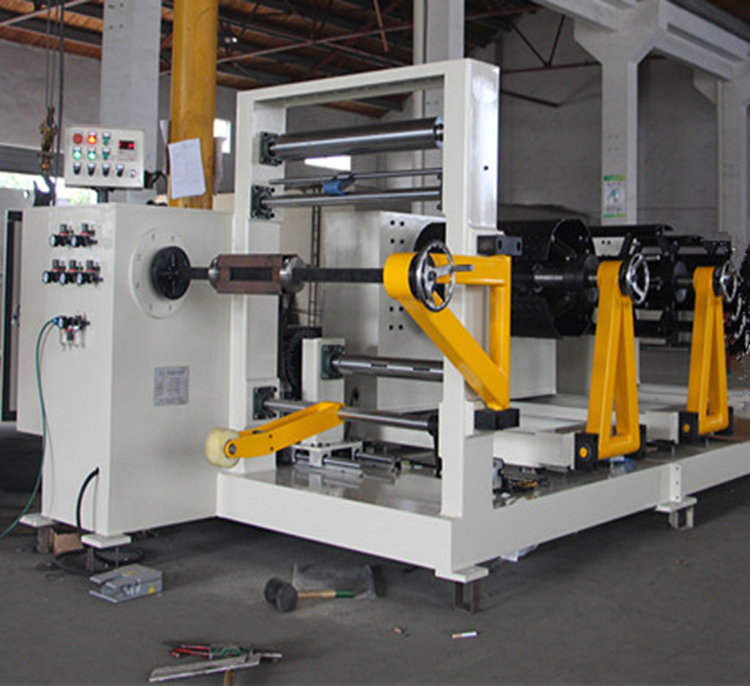

Fig 1: Transformer foil winding machine JJ-BRJ800-2's full view

20rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder

Fig 2: Transformer foil winding machine JJ-BRJ800-2's foil decoiler

20rpm Power Transformer Winding Machine Copper And Aluminium Strip Winder
