Cast Resin Transformer Foil Winding Machine Two Layers Film Strip

Brand Name : STT

Model Number : BRJ600-2

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 45 days

Packaging Details : seaworthy packing

Product name : transformer foil winding machine

Usage : winding foil

Foil width : 150 - 600mm

Foil conductor : copper and aluminium foil

Winding power : 11kw

Rotating speed : maximum 26rpm

Color : as requested

Warranty : 12 months

Contact Now

Two Layers Film Strip Winder Cast Resin Transformer Foil Winding Machine

Description of transformer foil winding machine BRJ600-2

Cast resin transformer foil winding machine BRJ600-2 is mainly used to wind film strip for making transformer coil. The transformer foil winding machine can wind two layers of film strip with maximum width 600mm. TIG welding unit of the transformer foil winding machine is for welding foil and bus bar together. The transformer foil winding machine is suitable for winding not only copper foil but also aluminium foil. The transformer foil winding machine features easy operating, strong pulling force and so on.

Quick details of transformer foil winding machine BRJ600-2

Foil width 150 - 600mm
TIG welding unit including welding machine and cooler
Cu foil thickness 0.2 - 2.0mm
Al foil thickness 0.3 - 3.0mm
Two foil decoilers
Two insulation decoilers
Winding motor power 11kw
Maximum winding speed 26rpm

Main parameters of transformer foil winding machine BRJ600-2

Coil Shape:	oval, circle and rectangular
Foil Material OD.:	1,000mm
Foil Material ID.:	500mm
Foil Decoiler Number:	2 pcs
Foil Decoiler Length:	650mm
Foil Decoiler Diameter Range:	400-520mm
Winding Power:	11KW
Winding Shaft Size:	80×80×950 mm
Winding Speed:	0 - 26 Rpm
Insulation Decoiler:	2 pcs
Insulation Material OD.:	≤400mm
Insulation Material ID.:	76mm
Insulation Paper Width:	650mm
End-fill Strip Feeder:	6 pcs
Edge Alignment System:	Photoelectric sensing automatic rectifying deviation
User Interface:	10inch (254mm) touch screen
Counting Turns Range:	0 - 9999.9

Cast Resin Transformer Foil Winding Machine Two Layers Film Strip

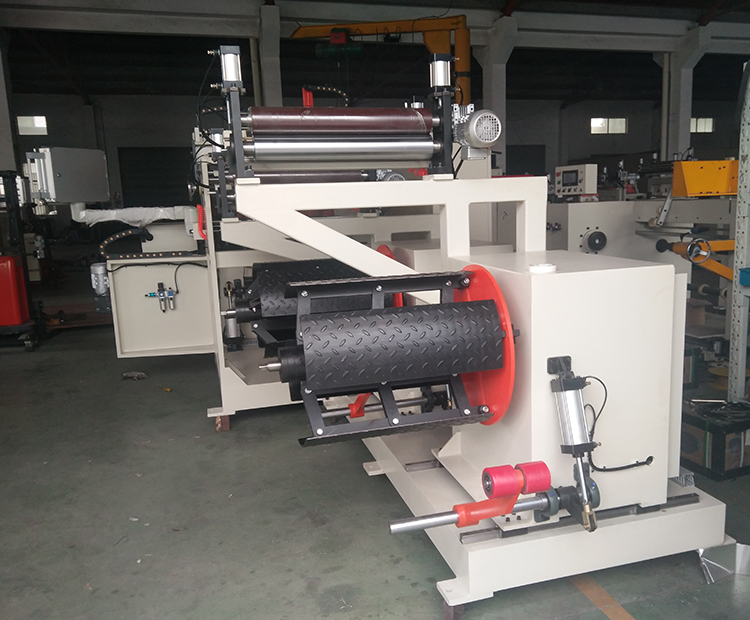

Fig 1: Transformer foil winding machine BRJ600-2's front view

Cast Resin Transformer Foil Winding Machine Two Layers Film Strip

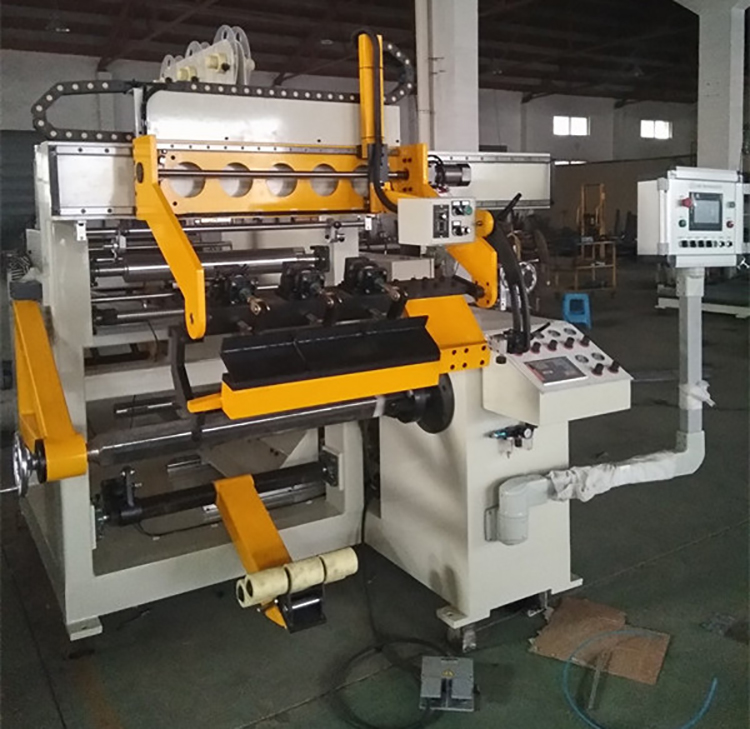

Fig 2: Transformer foil winding machine BRJ600-2's back view

Cast Resin Transformer Foil Winding Machine Two Layers Film Strip
