Oil Immersed Transformer Coil Winding Machine Semi Automatic

Semi Automatic Easy Operation Oil Immersed Transformer Coil Winding Machine

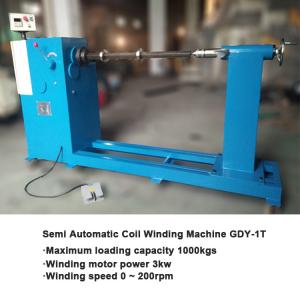

Introduction of transformer coil winding machine GDY-1T

Semi automatic transformer coil winding machine GDY-1T is one kind of semi automatic transformer coil winding machines, which can wind round wire for high voltage coils and flat wire for low voltage coils. The transformer coil winding machine is provided with one 3kw motor to drive the winding shaft. A foot pedal is adopted to run or stop the transformer coil winding machine and to switch the rotating direction of the winding shaft. The transformer coil winding machine is also provided with a counter to record the number of turns when winding.

Main features fo transformer coil winding machine GDY-1T

• Slow starting
• Smooth running
• Easy to operate

Main parameters of transformer coil winding machine GDY-1T

Typical standard specifications of GDY-1T are shown below, however, these can be easily modified as requested.

• Shaft center height from floor 1000mm
• Square shaft size 40x40x1200mm
• Maximum winding speed 200rpm
• Spear gear number 2pcs
• Low gear speed 0-50 rpm
• High gear speed 50-200 rpm
• Motor power 3kw
• Color customized
• Total weight 500kgs
• Machine dimension 2800(L)x 700(W)x 1400(H)mm

Oil Immersed Transformer Coil Winding Machine

Semi Automatic Transformer Coil Winder

Oil Immersed Transformer Coil Winder

Oil Immersed Transformer Coil Winding Machine Semi Automatic Images
