Dry Type Transformer Foil Winding Machine 600mm Width

Brand Name : STT

Model Number : BRJ600-2

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 45 days

Packaging Details : seaworthy packing

Machine name : transformer foil winding machine

Function : winding dry transformer coil

Foil width : maximum 600mm

Foil conductor : copper and aluminium foil

Motor power : 11kw

Winding speed : maximum 26rpm

Color : as requested

Warranty : 12 months

Contact Now

Factory Selling Máquina de bobinado de láminas Dry Type Transformer Foil Winding Machine

1) Description of transformer foil winding machine BRJ600-2

Transformer foil winding machine BRJ600-2 is one of our automatic foil winding machine models. The transformer foil winding machine is suitable for winding copper or aluminium foil with maximum width 600mm and the wound foil coil can be used to manufacture 600KVA cast resin transformer. With TIG welding unit, the transformer foil winding machine can weld foil and bus bar together. The transformer foil winding machine features slow starting, smooth running, low noise and high automation. With 10 inches touch screen, it is very easy to operate the transformer foil winding machine.

2) Main components of transformer foil winding machine BRJ600-2

Main frame, adopts iron structure;
Winding unit, adopts 11kw power motor;
Foil decoiler, with big tension;
Insulation decoiler, with big tension;
Control system, based on PLC, and;
Touch screen, coloured.

3) Main parameters of transformer foil winding machine BRJ600-2

Coil Shape:	oval, circle and rectangular
Conductor Foil Material OD.:	Φ1,000mm, maximum
Conductor Foil Material ID.:	Φ500mm
Conductor Foil Decoiler:	2 pcs
Conductor Decoiler Expanding Range:	Φ400mm ~ Φ520mm
Winding Power:	11KW
Winding Shaft Size:	80×80×950 mm
Winding Speed:	0 ~ 26 Rpm
Insulation Decoiler:	2 pcs
Insulation Material OD.:	Φ400mm, maximum
Insulation Material ID.:	Φ76mm
End-fill Strip Feeder:	6 pcs
Edge Alignment System:	Photoelectric sensing
HMI:	color touch screen
Counting Turns Range:	0 - 9999.9

Dry Type Transformer Foil Winding Machine 600mm Width

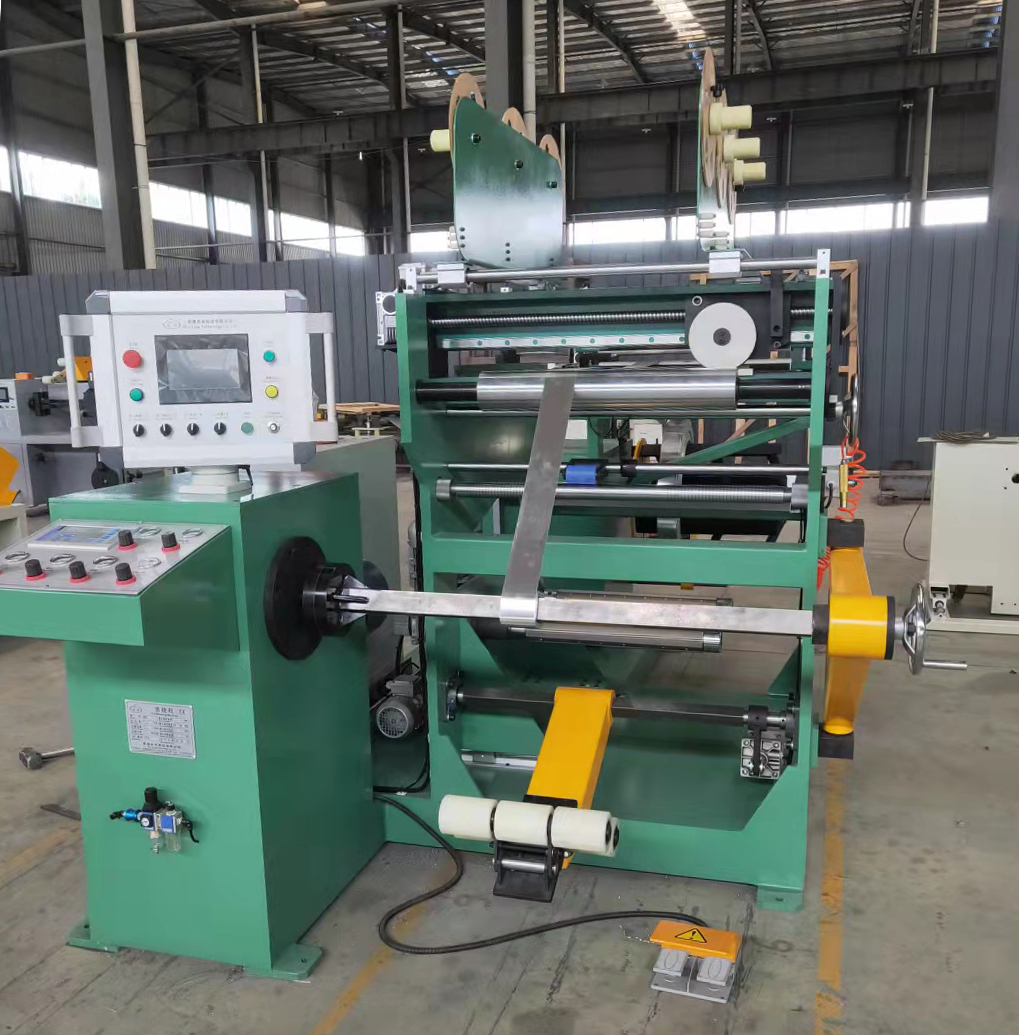

Fig 1: Transfomer foil winding machine BRJ600-2's front view
