Transformer Coil Making Equipment TIG Welding Copper Foil Winding Machine
Description of copper foil winding machine BRJ600-2
Automatic copper foil winding machine BRJ600-2 is one kind of transformer coil making equipment, which is mainly used to wind dry transformer coil with copper foil or aluminium foil. With two foil decoilers and two insulation paper decoilers, the copper foil winding machine can wind one or two layers of foil and one or two layers of insulation paper at once. The copper foil winding machine can wind the foil with maximum width 600mm. The foil winding machine is provided with TIG welding unit for welding foil and bus bar together. With a touch screen, it is very easy to operate the foil winding machine. The foil winding machine features slow starting, smooth running, and easy to operate.
Quick details of copper foil winding machine BRJ600-2
- Maximum 600mm foil width
- Winding both copper foil and aluminium foil
- Foil conductor ID 500mm, Maximum OD 1000mm
- TIG welding
- Pressing roller
- Customized color
Technical parameters of copper foil winding machine BRJ600-2
Typical standard specifications of copper foil winding machine BRJ600-2 are shown below, however, the copper foil winding machine can also be manufactured as requested.
| Foil width: | 200 ~ 600mm |
| Maximum Finished Coil OD: | 800mm |
| Finished Coil Shape: | oval, circle and rectangular,etc. |
| Conductor Foil Material OD.: | 1,000mm, maximum |
| Conductor Foil Material ID.: | 500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 650mm |
| Winding Mandrel Size: | 80×80×950 mm |
| Welding Mode: | TIG |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material Width: | 650mm |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 6 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 ~ 9999.9 |

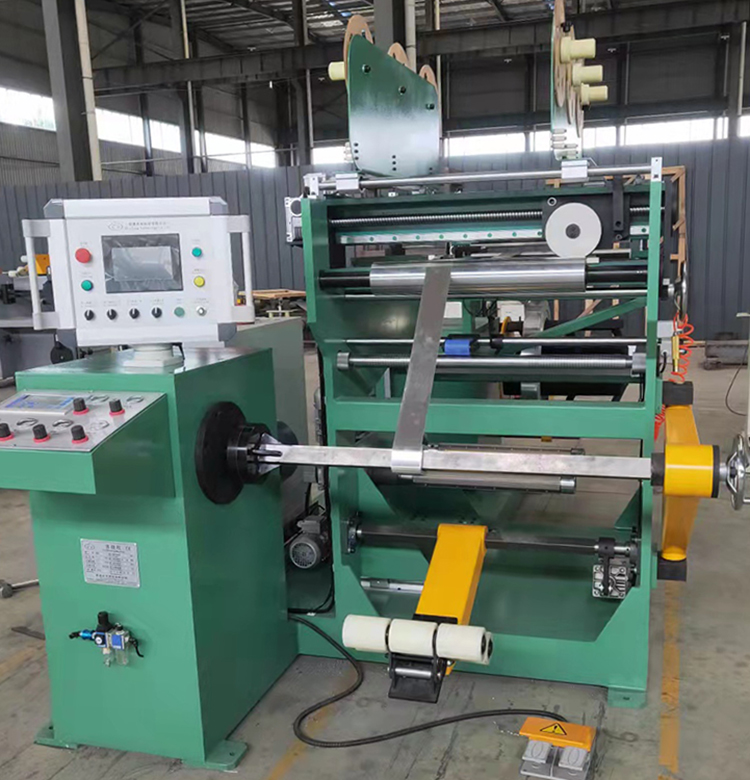

Fig 1: Copper foil winding machine BRJ600-2's front view

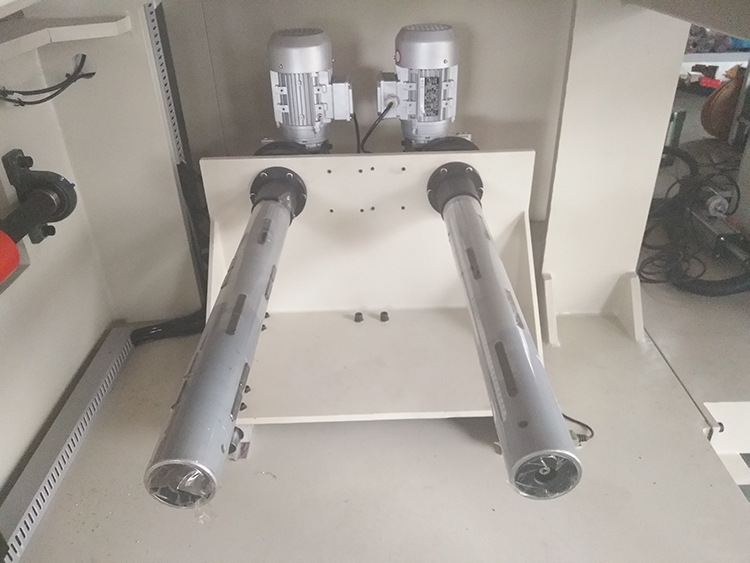

Fig 2: Copper foil winding machine BRJ600-2's insulation decoiler
