Introduction of transformer foil winding machine BRJ1600-2

Transformer foil winding machine BRJ1600-2 is a special winder equipment for winding conductor foil to make foil coils. These foil coils can be used in dry type transformers or other similar products. The transformer foil winding machine is provided with two sets of foil decoilers, which makes the transformer foil winding machine can wind one or two layers of conductor foil. With two insulation decoilers, the transformer foil winding machine can also wind two layers of insulation paper. The transformer foil winding machine is controlled through PLC. The transformer foil winding machine is easy operated with HMI.


Features of transformer foil winding machine BRJ1600-2

• Slow starting, when the machine starts, the winding speed is very slow for safety
• Running smooth, the machine runs smoothly during running
• High automation, control system based on PLC makes the machine high automation
• Full function
• Big power of a 30kw motor
• Neat foil edge, de-burring unit makes the foil edge neat
• Tight winding, big tension guarantees tight winding
• Easy operation

Main parameters of transformer foil winding machine BRJ1600-2

The following is the standard specification of transformer foil winding machine BRJ1600-2, however, the transformer foil winding machine can also be manufactured as requested.

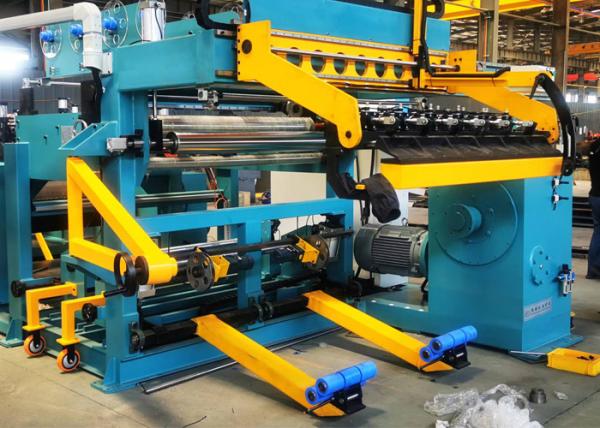

Fig 1: Transformer foil winding machine BRJ1600-2's front view


Fig 2: Transformer foil winding machine BRJ1600-2's back view
