TIG Automatic Transformer Foil And Coil Winding Machine

Brand Name : STT

Model Number : BRJ600-2

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 45 days

Packaging Details : seaworthy packing

Name : coil and foil winding machine

Foil width : 150 ~ 600mm

Welding mode : TIG

Cu foil thickness : 0.2 ~ 2.0mm

Al foil thickness : 0.3 ~3.0mm

Winding speed : 0 ~ 80 rpm

Winding power : 15kw

Warranty operiod : 12 months

Contact Now

Automatic Transformer Foil And Coil Winding Machine

Quick details of transformer foil winding machine BRJ600-2

Maximum foil width 600mm
Maximum winding width 600mm
Foil material ID 500mm
Foil material OD 1000mm
Winding speed 26rpm
Winding power 11kw
Automatic TIG welding
Two foil decoilers

Description of transformer foil winding machine BRJ600-2

Transformer foil winding machine BRJ600-2 is a professional winder equipment. The transformer foil winding machine can be used to winding conductor foil and wire. The winding machine can wind one or two layers of foil and one or two layers of insulation paper and the winding machine can also wind copper or aluminium wire. With TIG welding unit, the transformer foil winding machine can weld foil and bus bar together. With HMI and PLC, the transformer foil winding machine can be operated easily and intuitively.

Main parameters of transformer foil winding machine BRJ600-2

Typical standard specifications of transformer foil winding machine BRJ600-2 are shown below and the foil winding machine can also be manufactured as requested.

Maximum Foil Width:	600mm
Conductor Foil Material OD.:	Ø1,000mm, maximum
Conductor Foil Material ID.:	Ø500mm
Number of Conductor Decoiler:	2 pcs
Winding Power:	15KW
Winding Shaft Size:	80×80×950 mm
Max. Winding Speed For Winding Foil:	35 Rpm
Insulation Decoiler:	2 pcs
Insulation Material OD.:	≤Ø400mm
Insulation Material ID.:	Ø76mm
End-fill Strip Feeder:	6 pcs
Edge Alignment System:	Photoelectric sensing
Counting Turns Range:	0 ~ 9999.9
Power Supply:	3-phase 380V 50Hz

TIG Automatic Transformer Foil And Coil Winding Machine

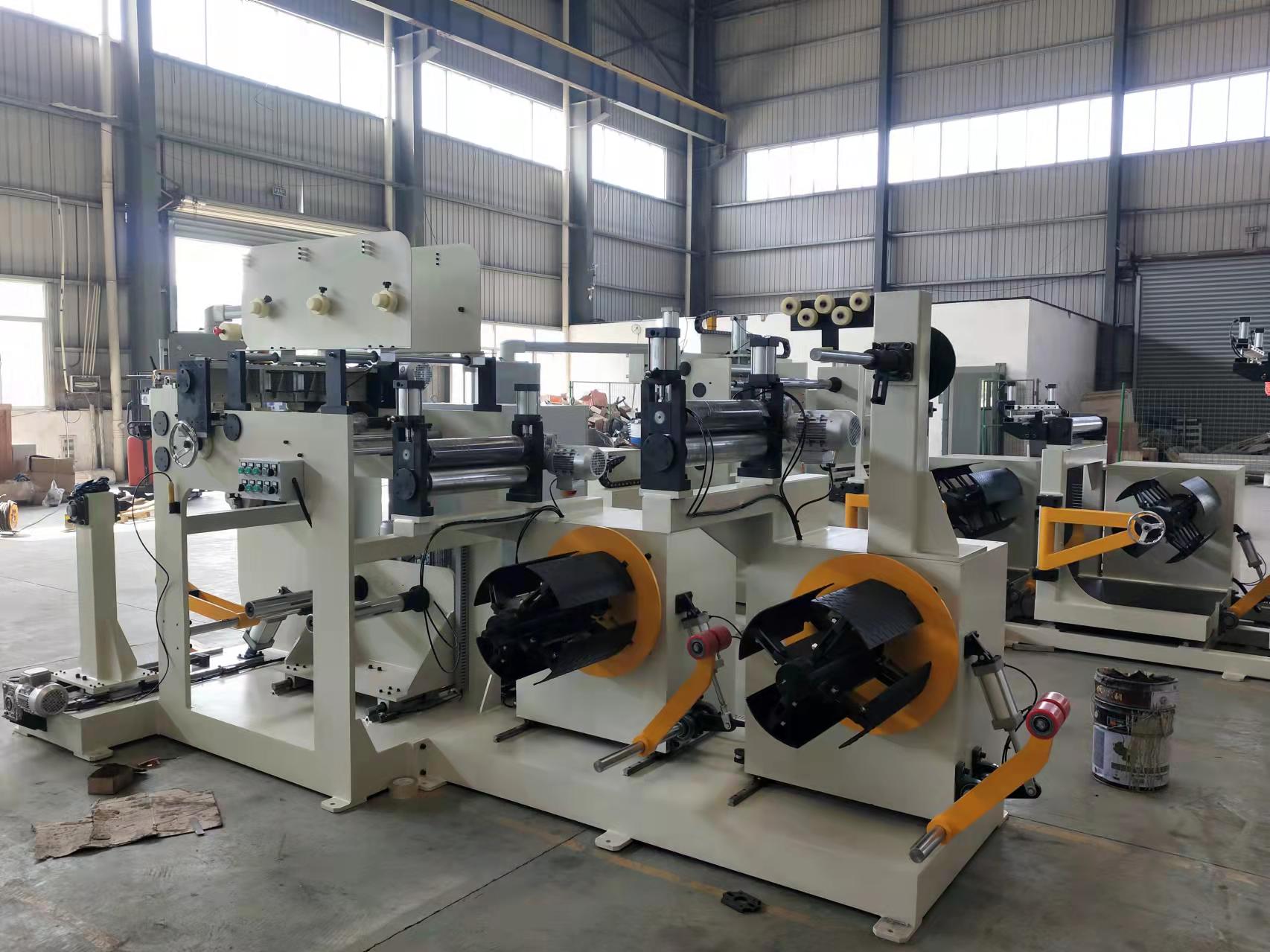

Fig 1: Transformer coil and foil winding machine BRJ600-2's front view

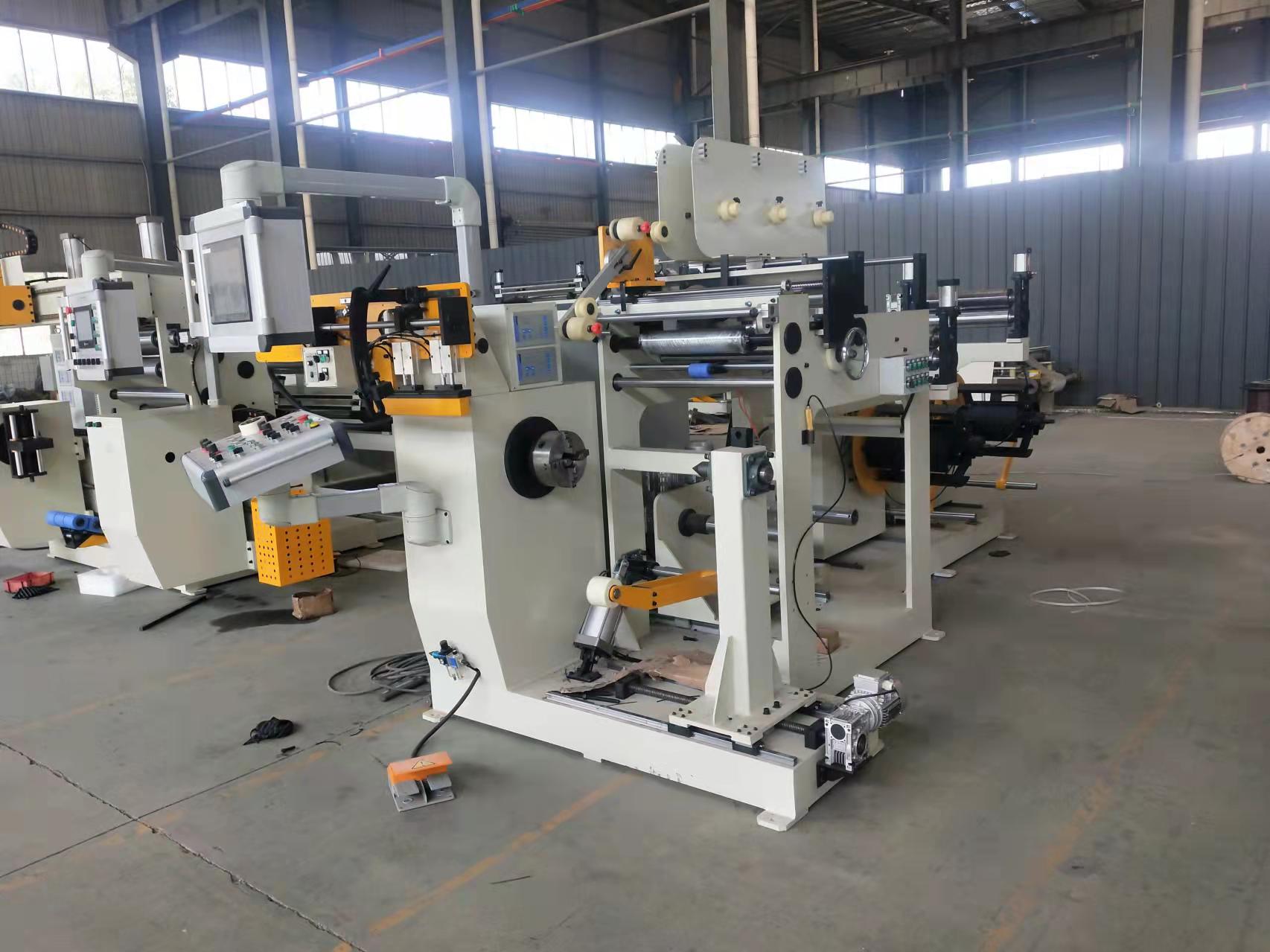

Fig 2: Transformer coil and foil winding machine BRJ600-2's side view
