Split Type Transformer Coil Winding Machine Semi Automatic

Factory Direct Selling Easy Operation Semi Automatic Transformer Coil Winding Machine

General information of transformer coil winding machine GDY-2T

Semi automatic transformer coil winding machine GDY-2T is one kind of professional wire winder, which can be used to wind copper flat and round wire or aluminium flat and round wire to make transformer core. The transformer coil winding machine is provided with a 3kw motor to drive the winding shaft to rotate. With a counter, the transformer coil winding machine can record the number of turns when winding and can save the number of turns even if the power is off suddenly. Moreover, the number of turns can be preset through the counter, when the transformer coil winding machine finishes winding the preset number of turns, it will stop running automatically. The foot pedal can be used to switch the rotation direction.

Main components of transformer coil winding machine GDY-2T

1. Main frame

2. Gearbox

3. Tailstock with liver center

4. Electric control cabinet

5. Foot pedal

Main parameters of transformer coil winding machine GDY-2T

Typical standard specifications of transformer coil winding machine GDY-2T are shown below, however, these can be easily modified as requested.

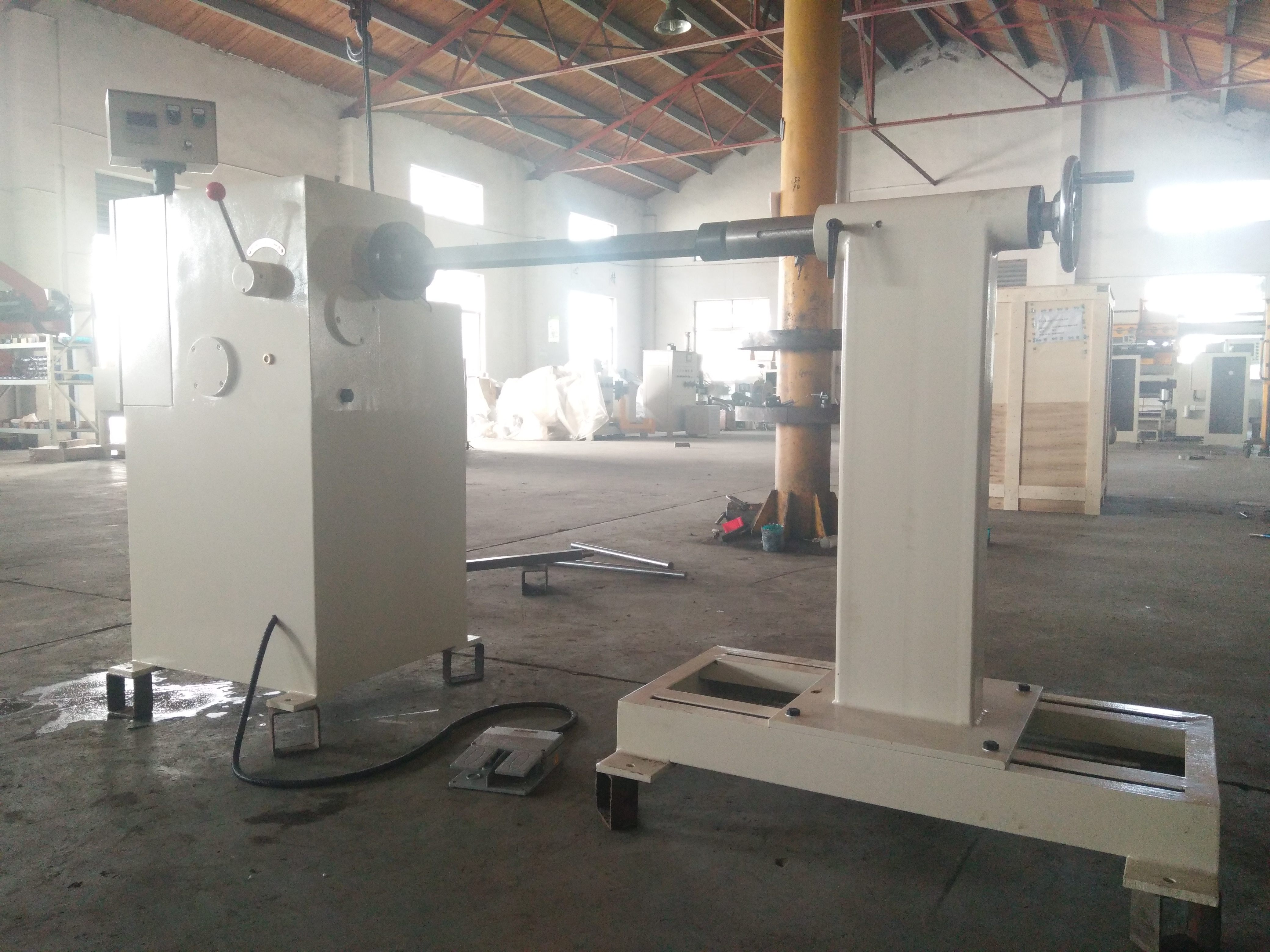

Fig 1: Semi automatic transformer coil winding machine's full view

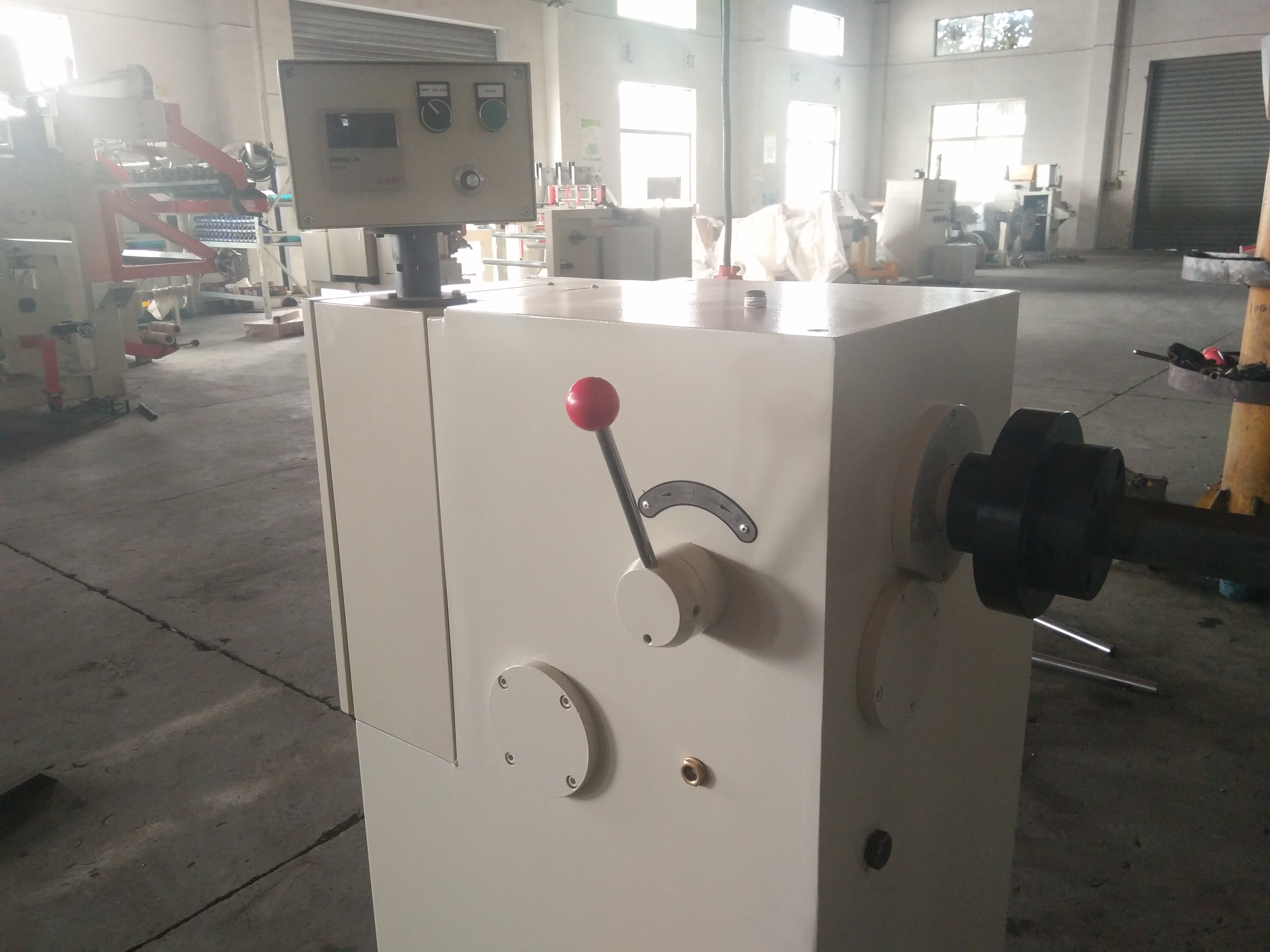

Fig 2:Semi automatic transformer coil winding machine's head
